Introduction​

C792 is an HDMI-to-CSI-2 conversion module with HDMI loop-out and support for I2S audio output.

The HDMI input supports up to 4K 60Hz, and the HDMI loop-out displays the same content as the HDMI input.

The CSI-2 output supports up to 1080p 60Hz (4K input will automatically scale down to 1080p while maintaining the refresh rate).

Instructions​

The hardware solution consists of GSV2001 and TC358743, where GSV2001 implements HDMI splitting functionality, and TC358743 handles HDMI-to-CSI-2 conversion.

  • To ensure stable operation of the module, it is strongly recommended to power the module via the 5V power interface.

  • When the "HDMI loop-out" is connected to a display, the HDMI source detects the display connected to the "HDMI loop-out." When the "HDMI loop-out" is not connected to a display, the HDMI source detects the TC358743-simulated display.

  • The CSI-2 interface (15-pin) is a 2-channel CSI-2 interface used to connect Raspberry Pi Zero, 3B, and 4B, supporting up to 1080p 50Hz capture. The CSI-2 interface (22-pin) is a 4-channel CSI-2 interface used to connect Raspberry Pi CM4, CM5, and 5B, supporting up to 1080p 60Hz capture.

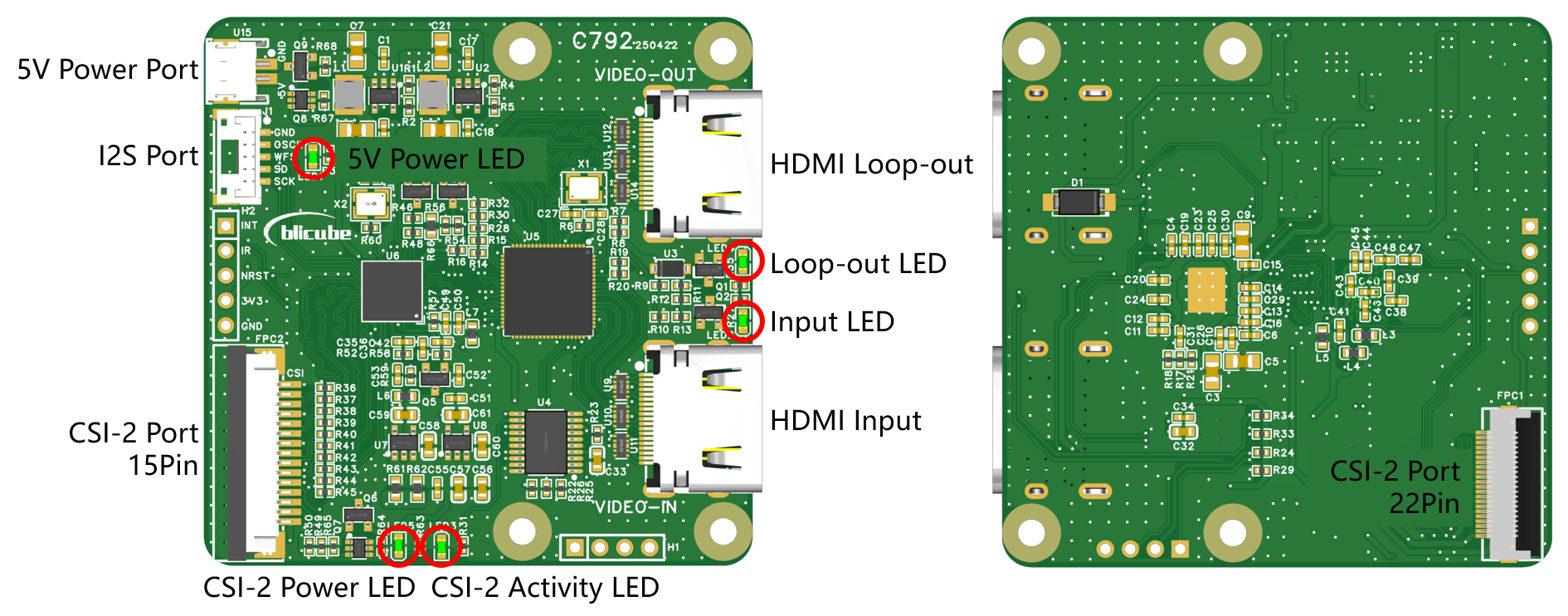

image-20250520101420516

The software usage instructions can directly reference C790's software demo.

Dimensions​

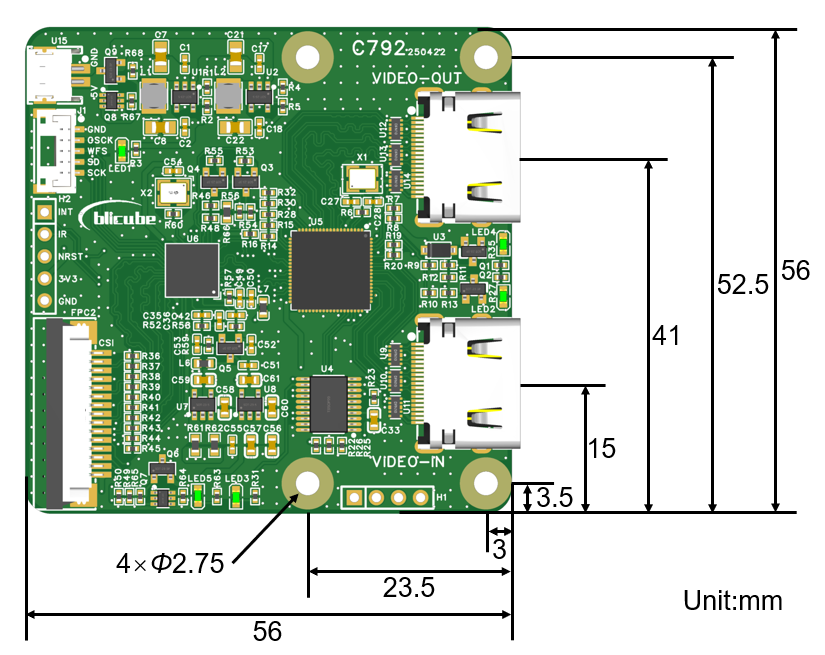

image-20250518114311398

Package Contents​

C792 module ×1

5V power cable ×1

FPC 15-pin 15cm ×1

FPC 22-pin 15cm ×1

I2S cable ×1
