C792 HDMI-to-CSI Converter: Bridging 4K Input to 1080p@60Hz Output
· 阅读需 2 分钟

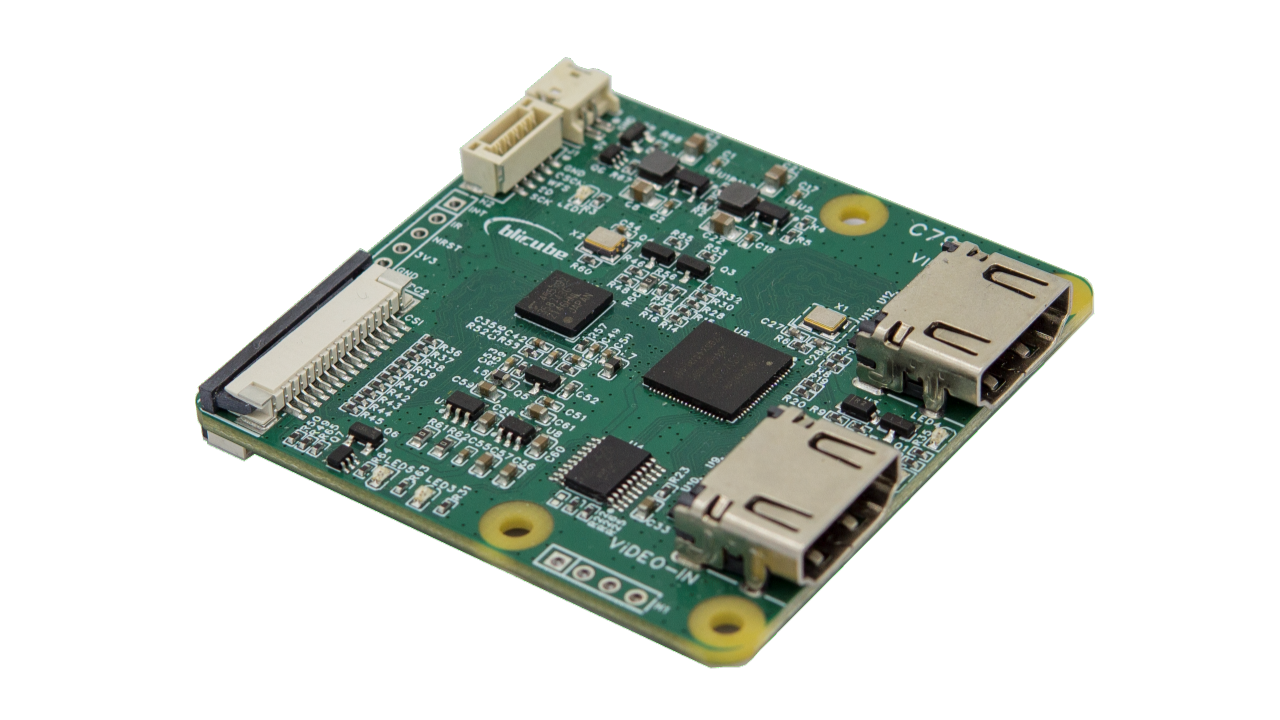

The C792 HDMI-to-CSI-2 converter module is now available! This specialized converter designed for Raspberry Pi and Jetson platforms can transform 4K@60Hz HDMI input signals into 1080p@60Hz CSI-2 output, providing the perfect solution for your embedded video projects with I2S audio capture.
🎯 Key Features
- 4K Input Support: Up to 4K@60Hz HDMI input capability
- Dual Output: Simultaneous HDMI loop-out and CSI-2 conversion output
- Audio Support: I2S digital audio capture
- Wide Compatibility: Perfect support for Raspberry Pi series and Jetson platforms
- Plug & Play: No complex configuration required, quick setup
🔌 Interface Configuration

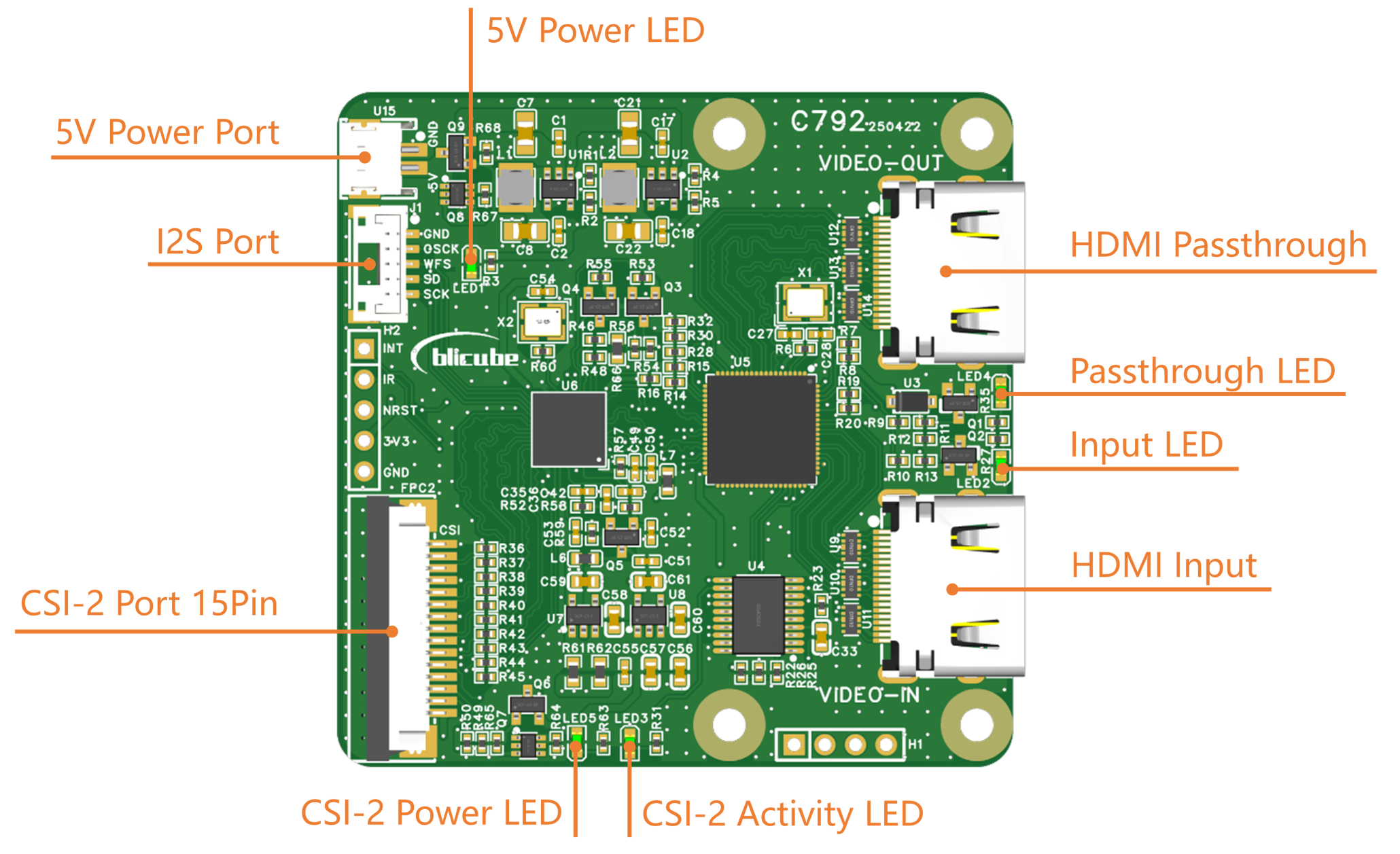

C792 provides two CSI-2 interfaces for different hardware:
- 15-pin FPC: 2-lane, suitable for Raspberry Pi Zero/3B/4B

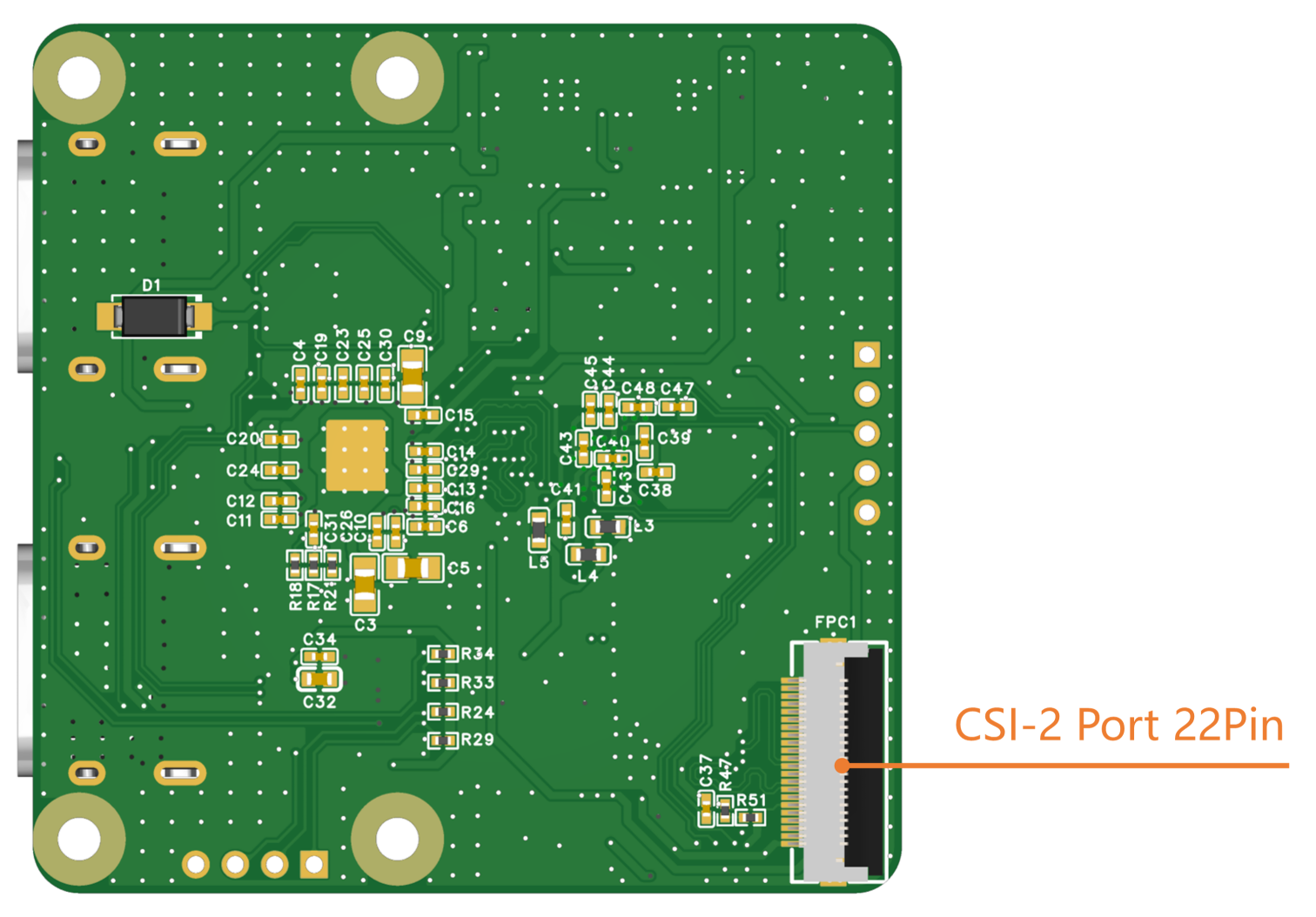

- 22-pin FPC: 4-lane, suitable for Raspberry Pi CM4/5B and Jetson series
Besides, the I2S interface is also provided for audio capture.
 |  |
|---|
🚀 Application Scenarios
- Media Centers: Game console/set-top box video capture
- Industrial Monitoring: 1080p@60Hz video capture from manufacturing equipment
- AI Development: Computer vision projects on Jetson platform

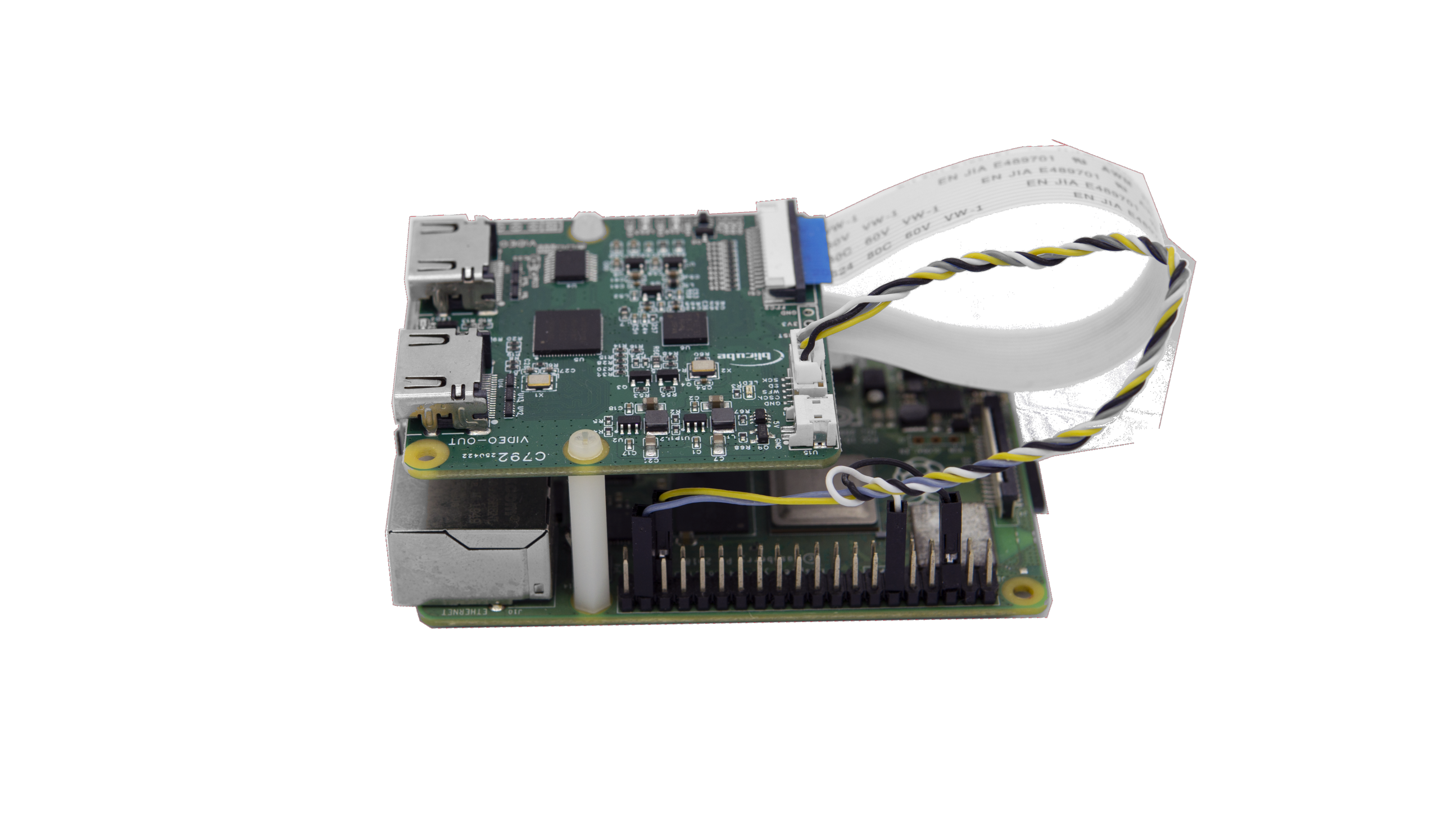

By the way, the C792 is originally designed for Raspberry Pi with proper mounting holes and screws.
And here is a typical user case:
- You can use the C792 to capture the video output from a PC, loop it through to a local monitor, and convert the HDMI signal into a CSI signal for direct use with Raspberry Pi or other devices.
