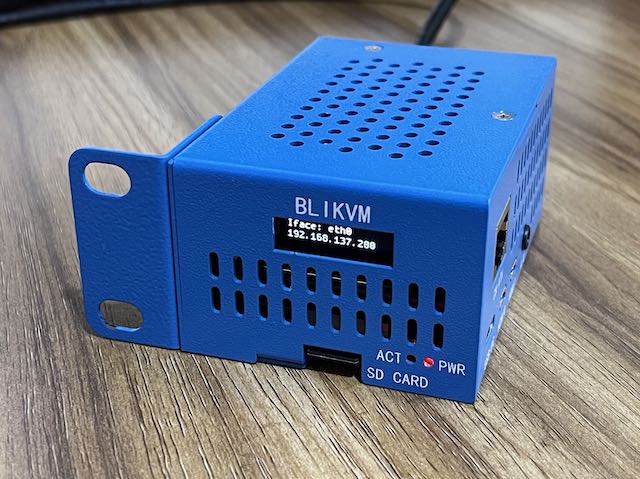

BliKVM v3

974ec0f1fbdfe922a1a78a4c7569ef0

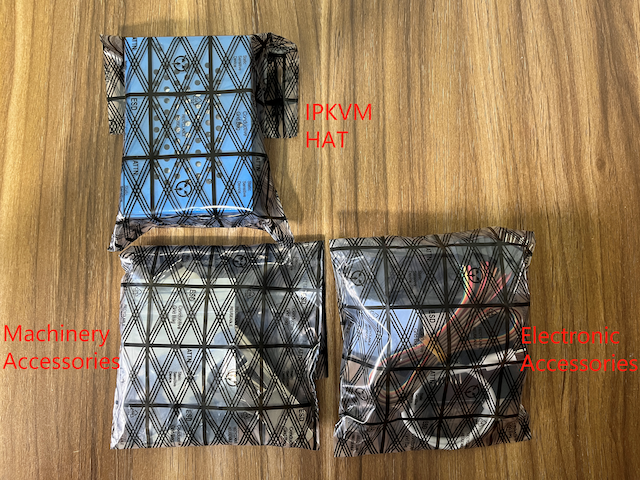

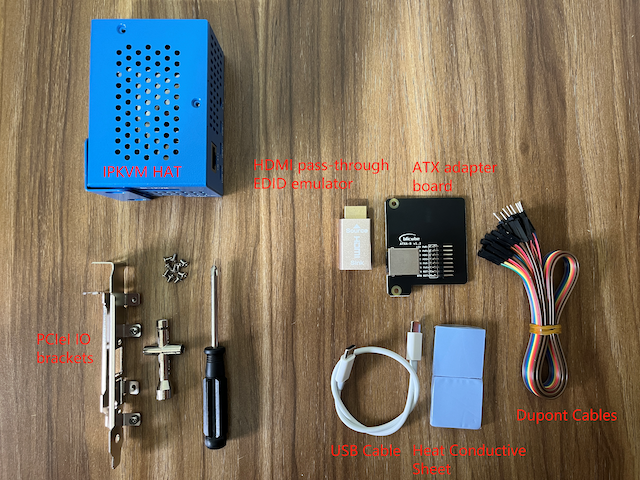

1. Unpack and take out the devices​

image-20220621155640312

Open the protective bag

1655798851616

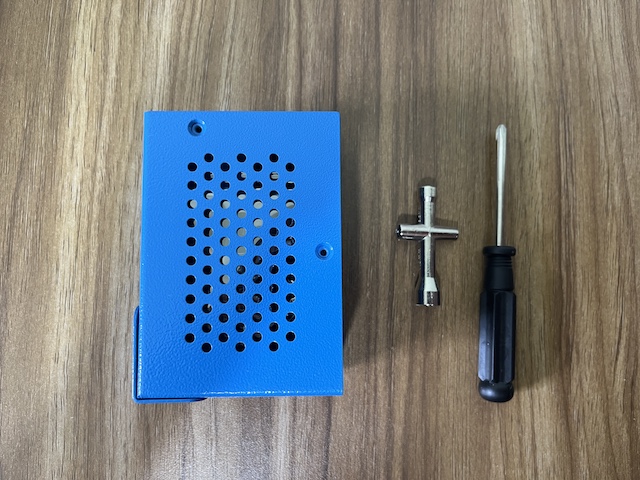

2. Install the main device​

IMG_8321

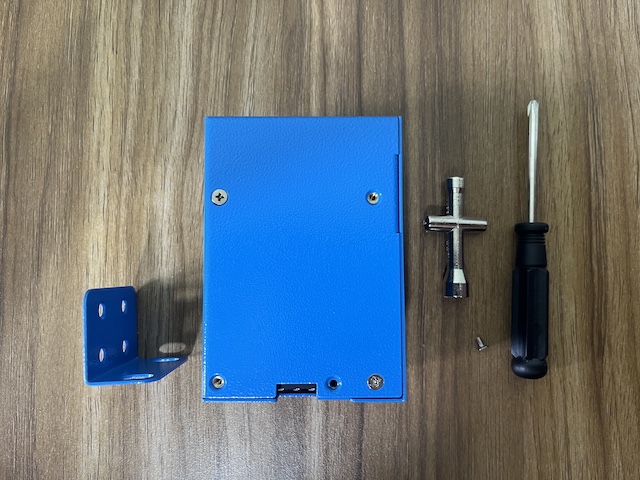

Flip to back

bdd0c3e193f84ec00fdf004c7b5ce57

IMG_8323

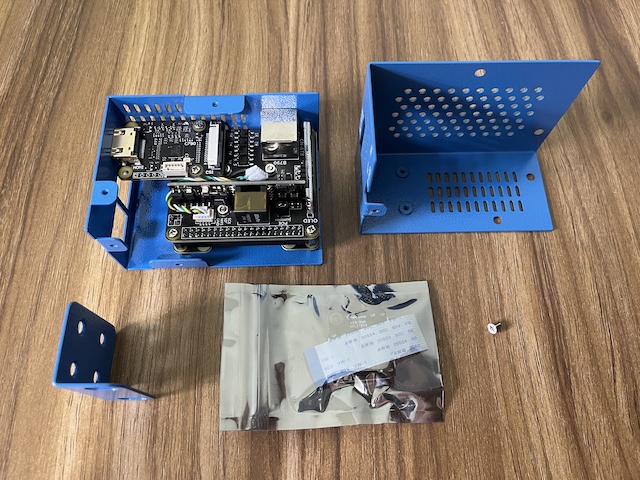

Open the case

IMG_8324

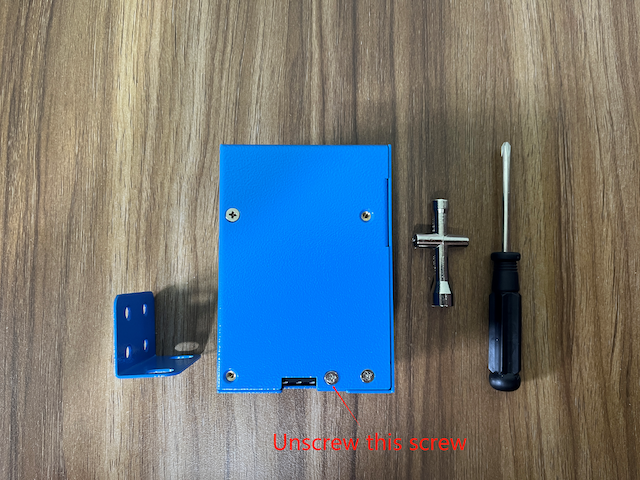

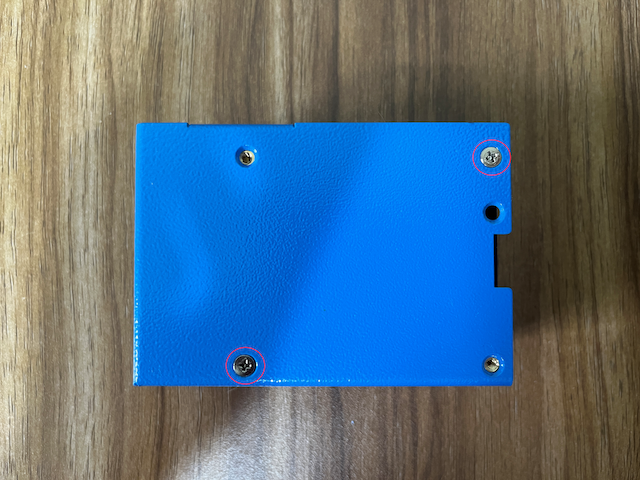

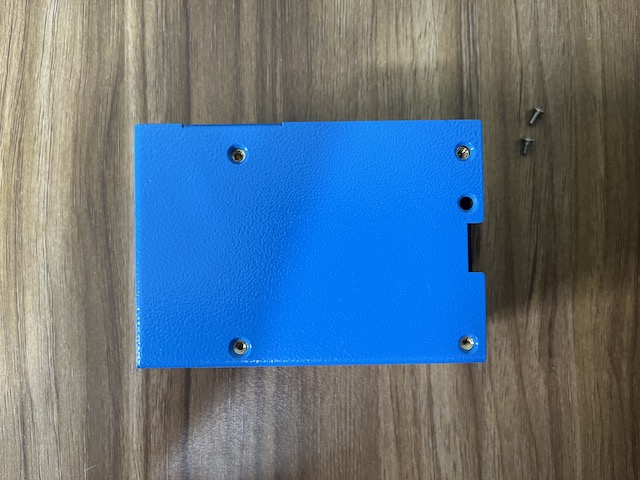

Flip to back, unscrew the two screws on the back

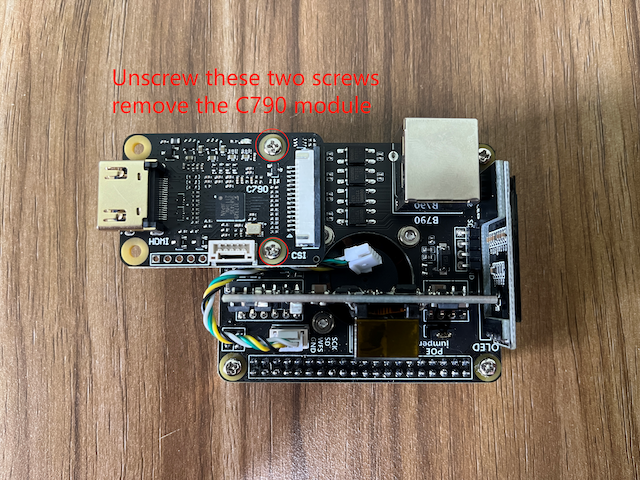

e54b05a179f8d36fcea8d6dc84735c6

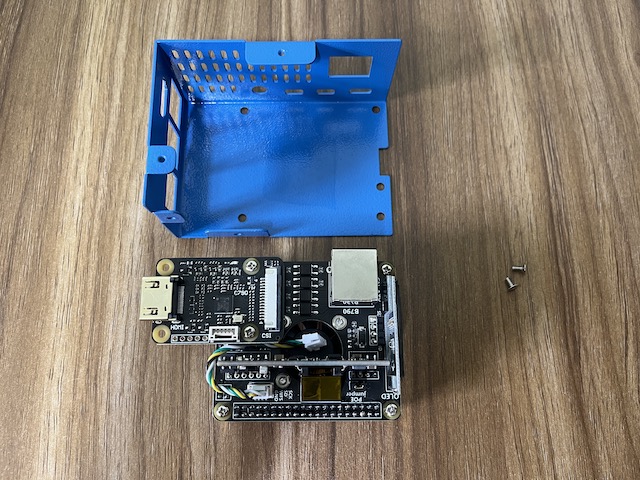

IMG_8326

IMG_8327

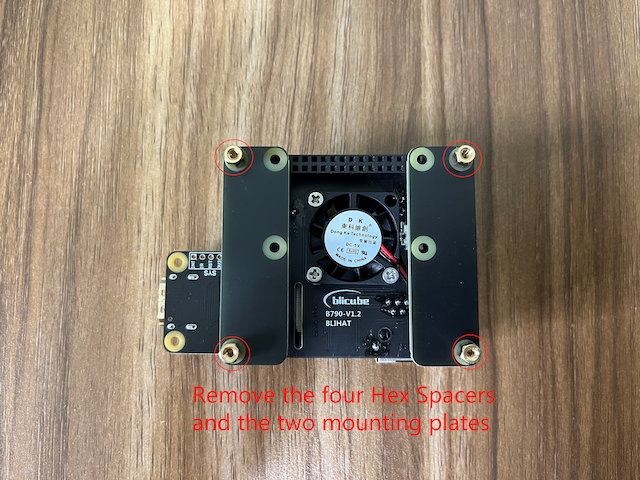

170cdf3b2f049843b4677db0e8d87af

IMG_8329

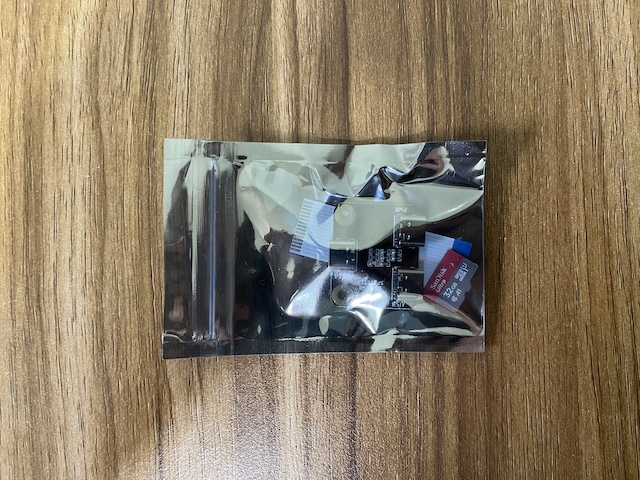

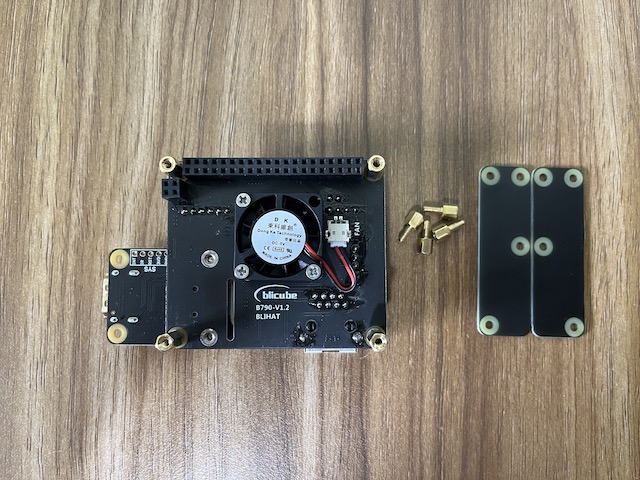

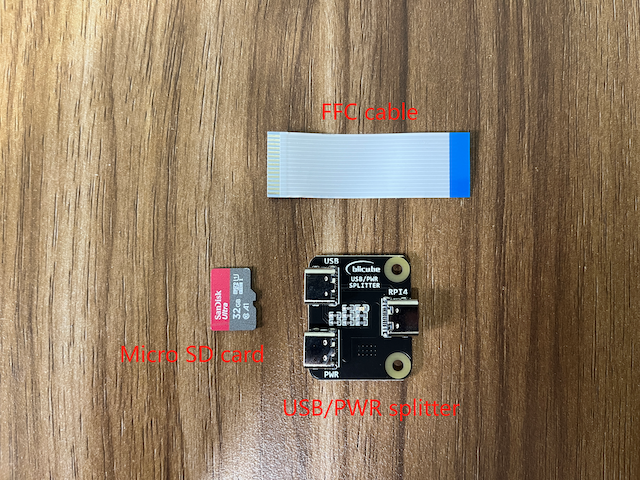

Open the protective bag and take out the parts

IMG_8330

1655800122720

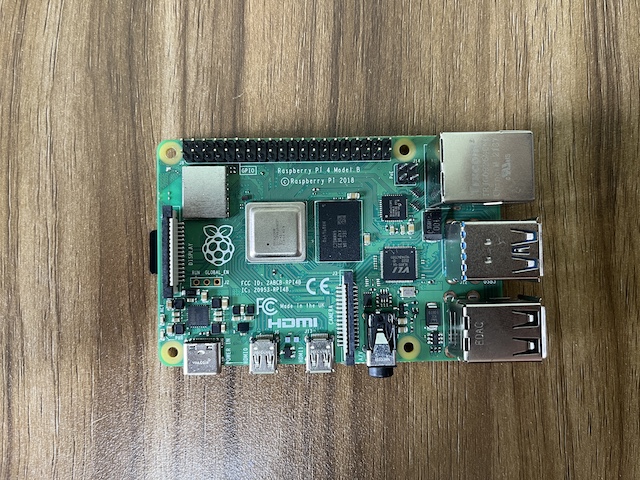

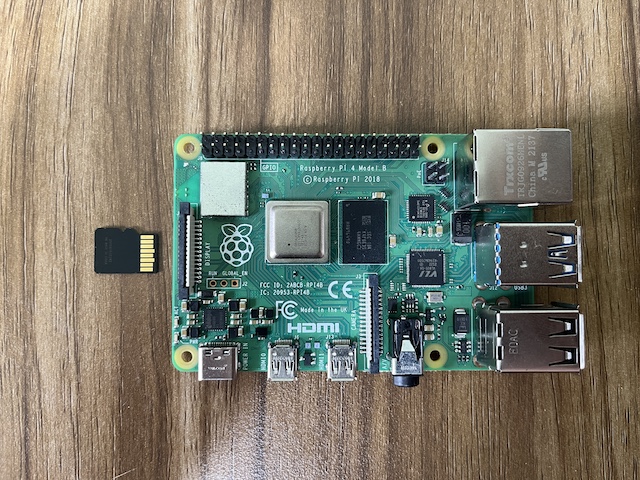

Install Micro SD card

IMG_8332

IMG_8333

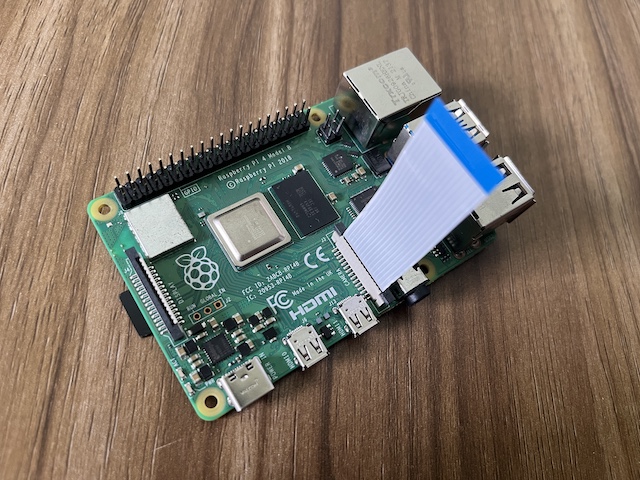

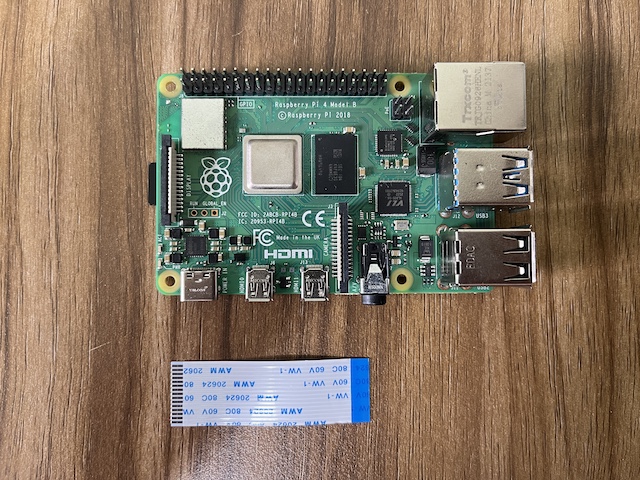

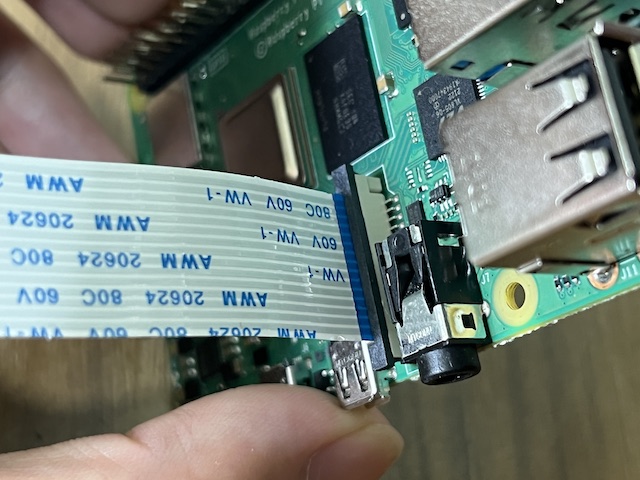

Install the FFC cable

IMG_8334

IMG_8335

IMG_8336

bc046e5658d8e12828d494f4cb150f2

IMG_8338

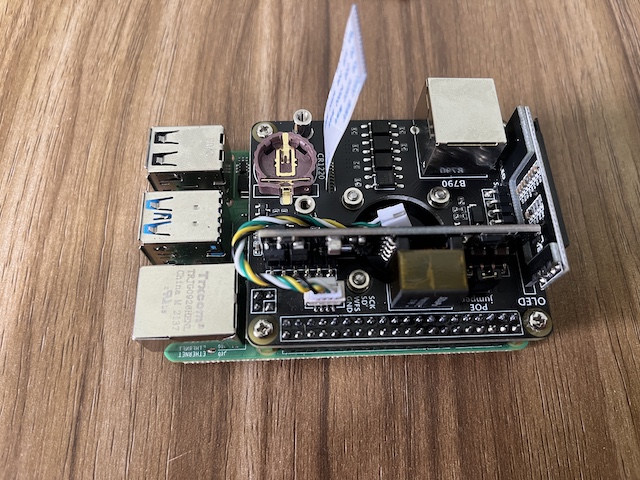

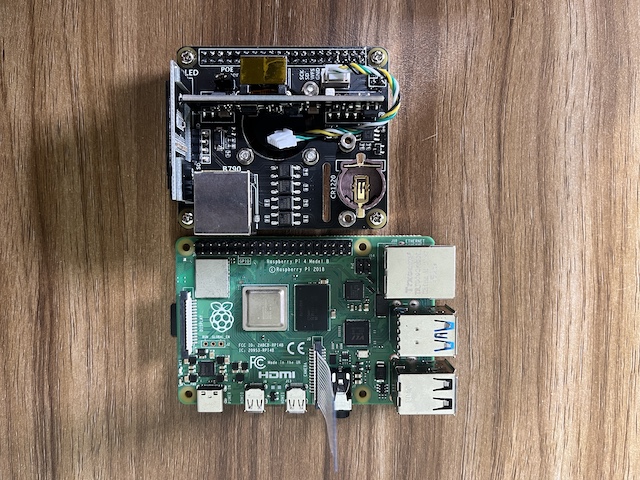

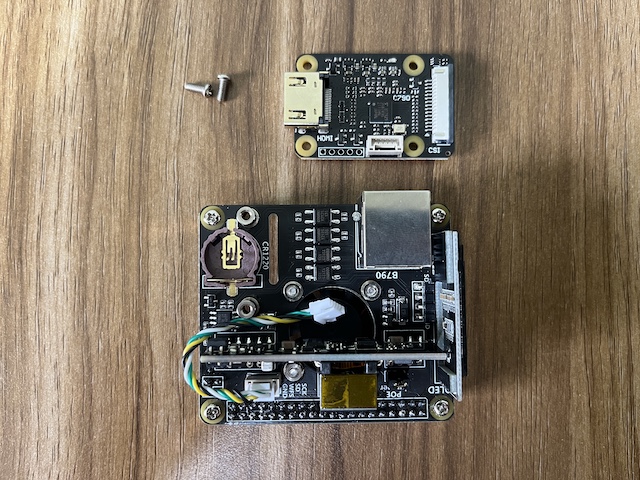

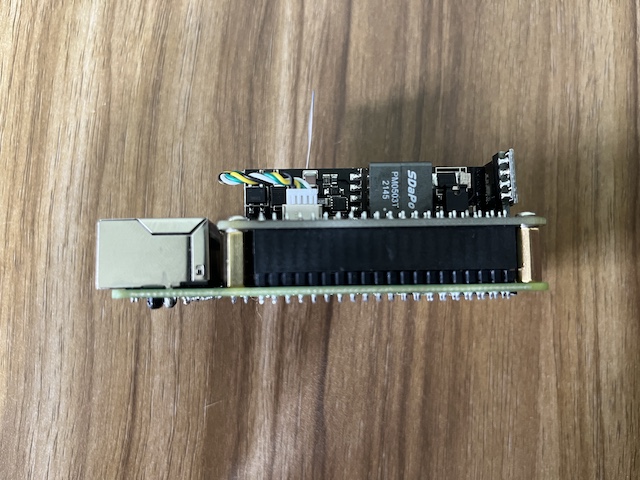

Install the HAT on the Raspberry Pi 4

IMG_8339

IMG_8340

IMG_8341

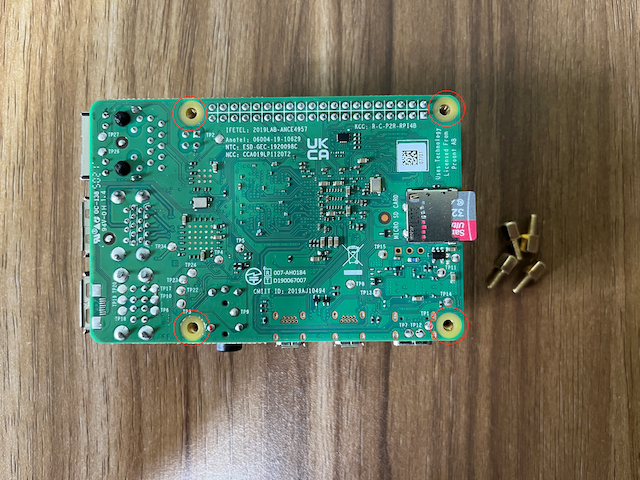

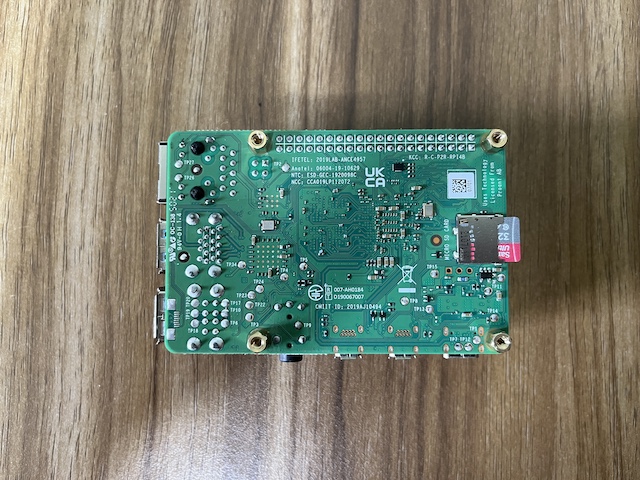

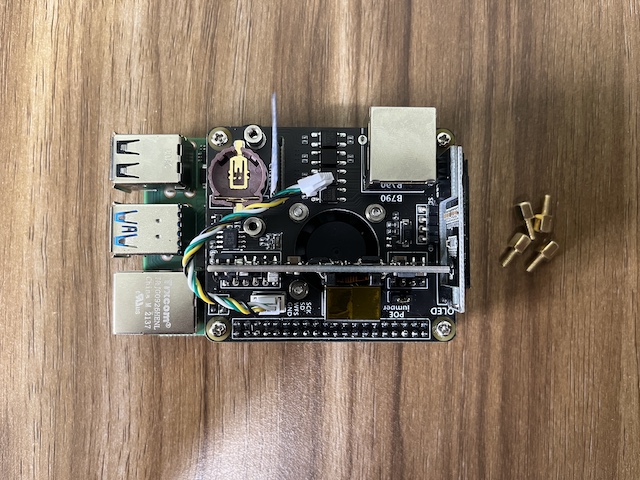

Install the four Hex Spacers

IMG_8342

1655800959748

IMG_8344

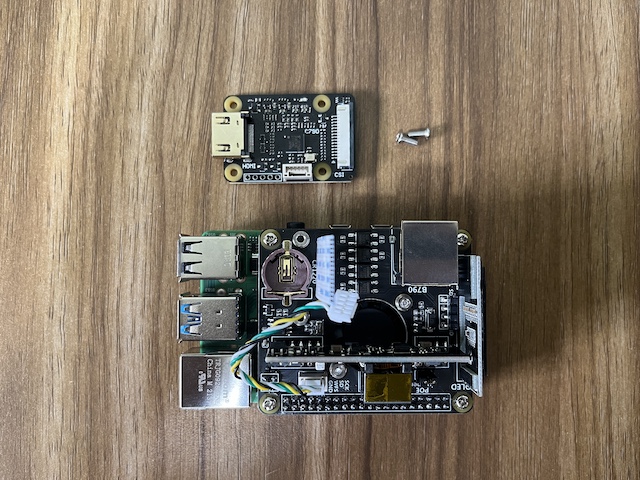

Install the C790 module, use the long screws you just removed

IMG_8345

IMG_8346

IMG_8347

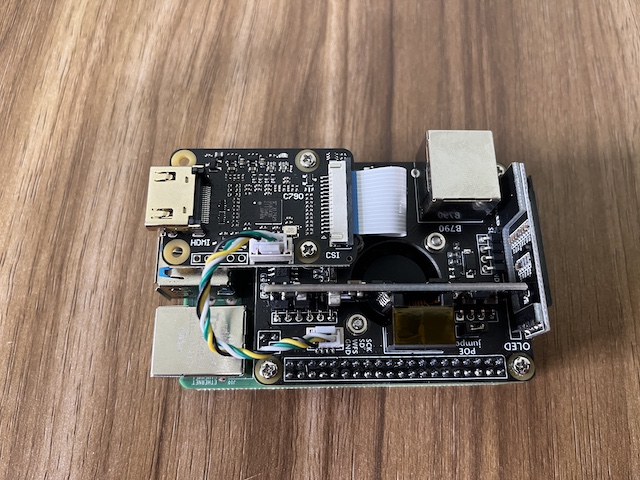

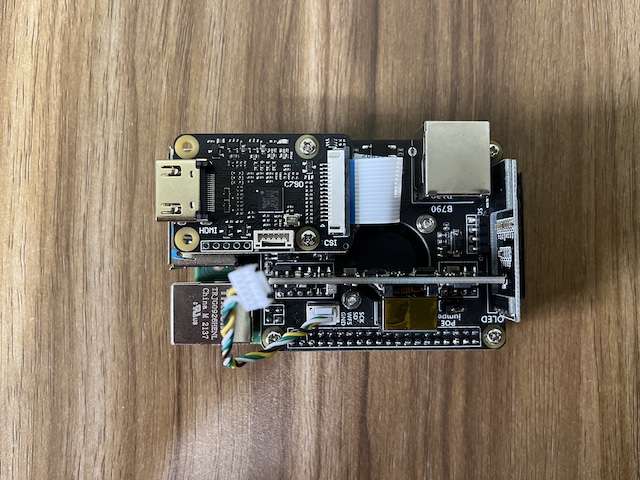

Install the audio cable

IMG_8348

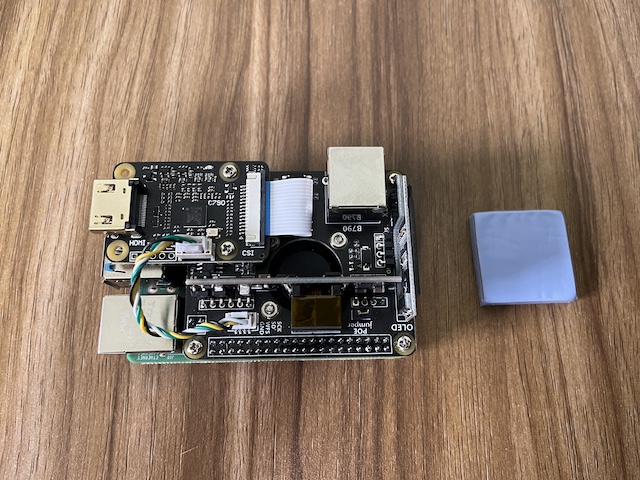

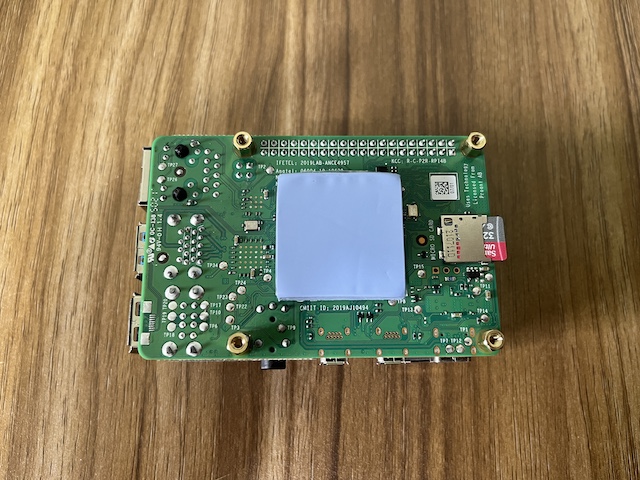

Stick a heat conductive sheet on the back of the Raspberry Pi 4, tear off the protective film of the sheet

IMG_8349

IMG_8350

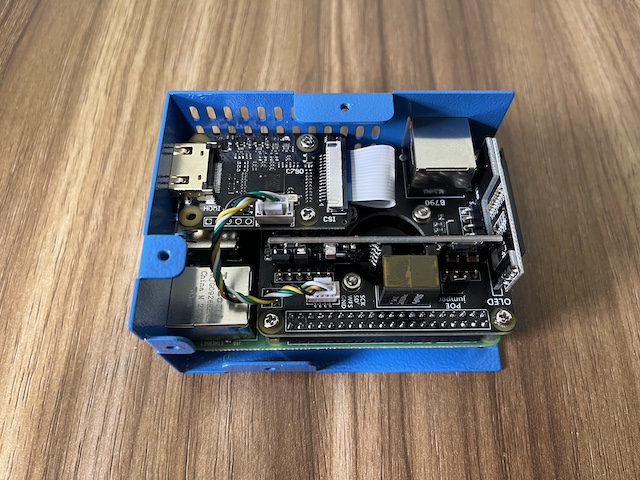

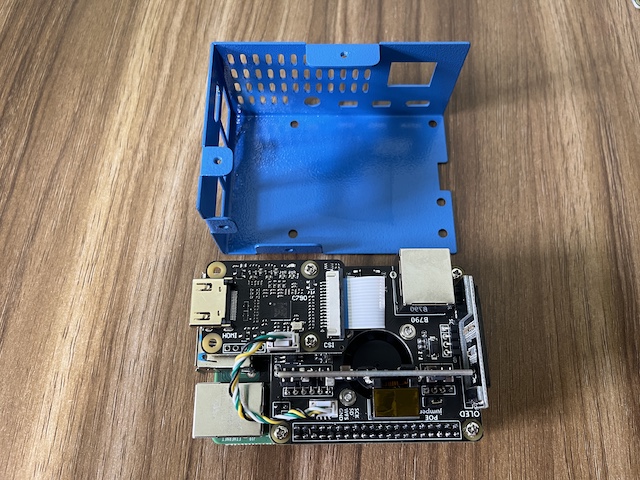

Install the HAT into the case

IMG_8351

IMG_8352

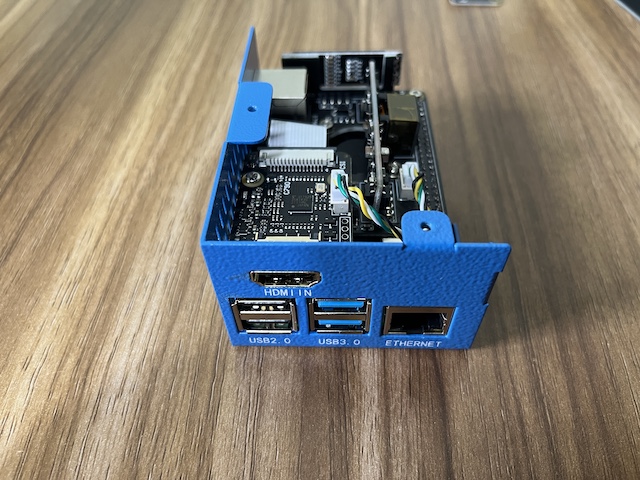

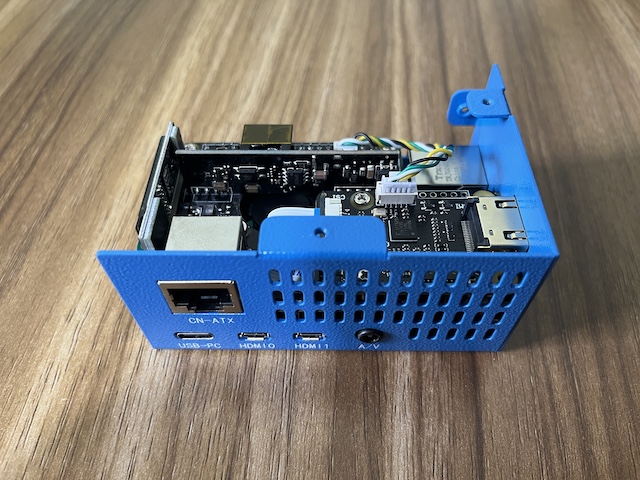

Pay attention to the alignment of the holes

IMG_8353

IMG_8354

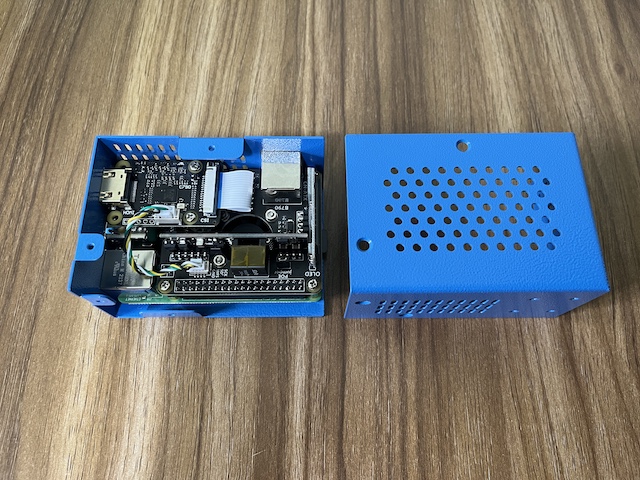

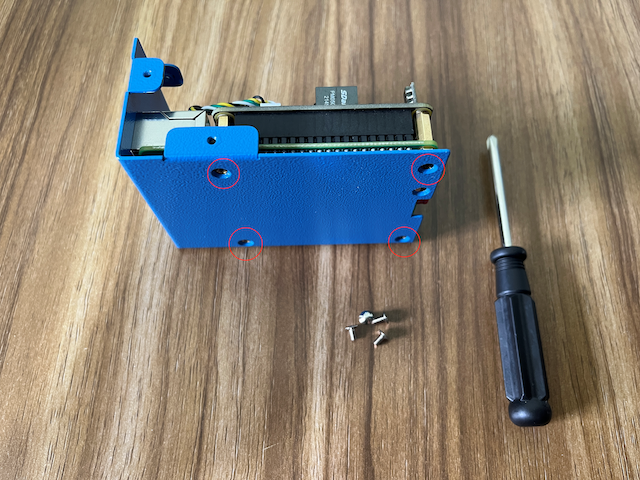

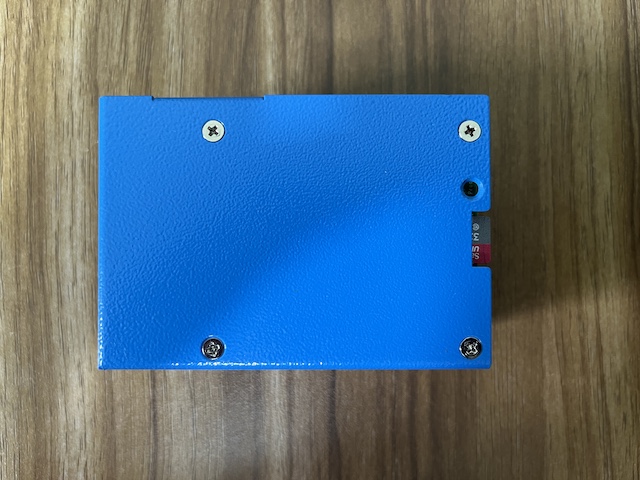

Flip to back and install 4 screws

16f2b19f604e8124e25858dc4469aa8

IMG_8356

IMG_8357

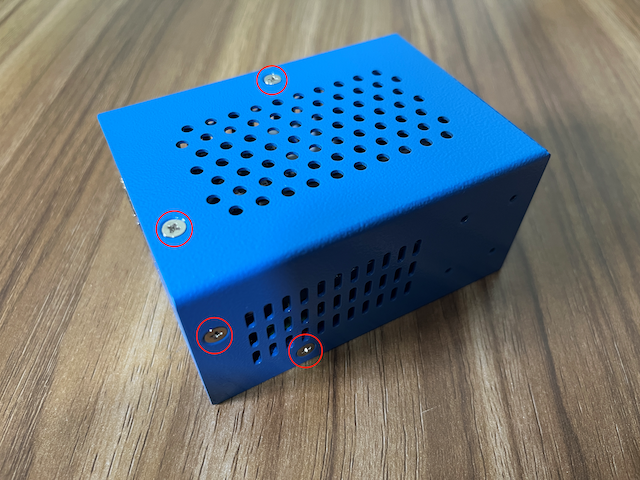

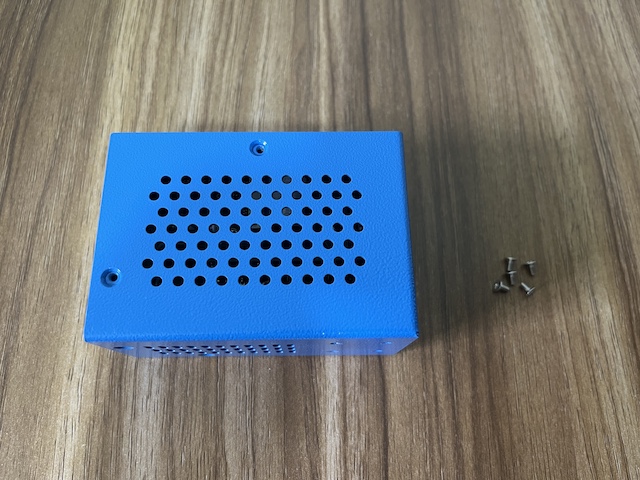

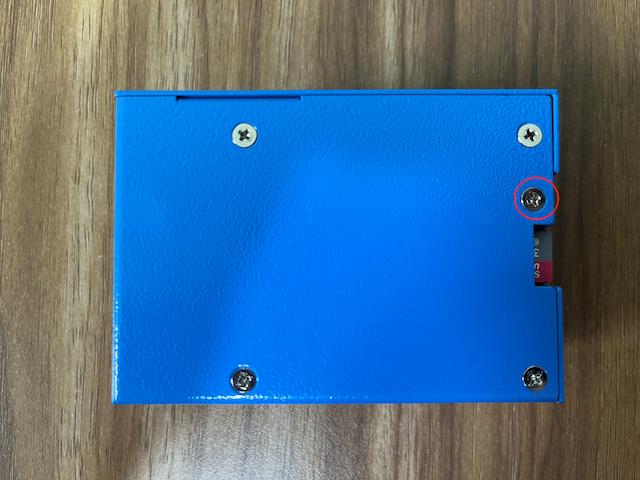

Install five case screws

IMG_8358

18e0e4dd0d429ac79a2155c149292e7

e87885bfc486793a4bf4065edc4e7ec

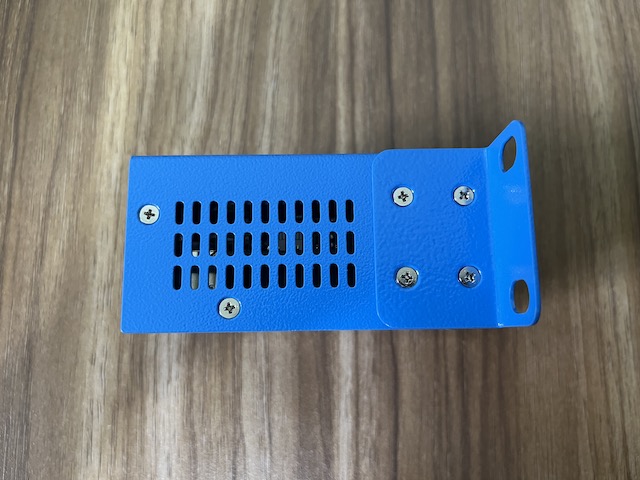

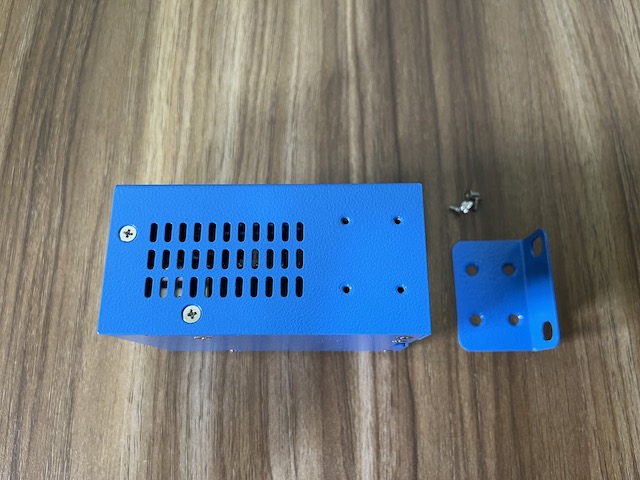

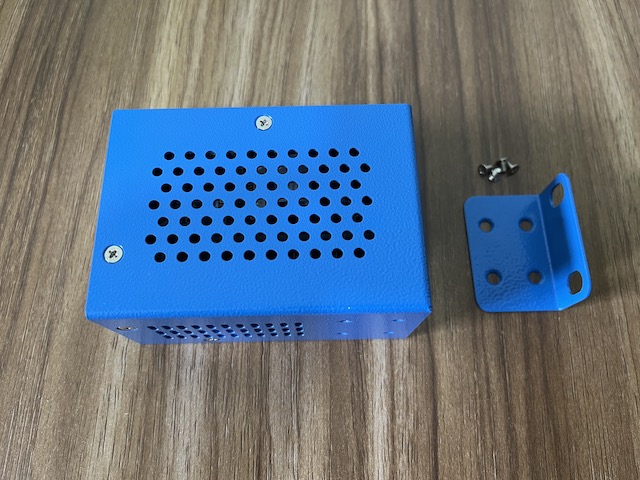

Install the mounting ear as needed

IMG_8361

IMG_8362

IMG_8363

IMG_8365

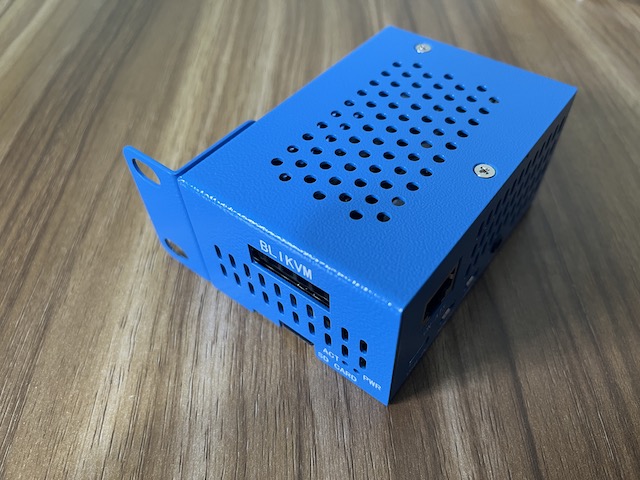

The main device installation is complete
